WHEN it comes to large-scale Cleancube shipping container cleanroom facilities, seven really is heaven – with five impressive process areas giving you the space you need to shine.

The shipping containers can be safely and securely conjoined side by side or stacked and connected by staircases, giving the Cleancube Maxi all of the usual benefits of a mobile cleanroom but with the flexibility to take your operation to the level your growth requires.

The Maxi 7 is comprised of 7 x 40ft containers connected side by side, delivering 5 large process areas situated around an intelligently positioned cleanroom corridor, separate PAL and MAL zones and a spacious Plant room.

As your business grows, your needs change – with Cleancube Maxi, you can build as high or as wide as you require, giving you peace of mind that with Guardtech, there are limits to where you can go. Unlock your potential with Cleancube Maxi.

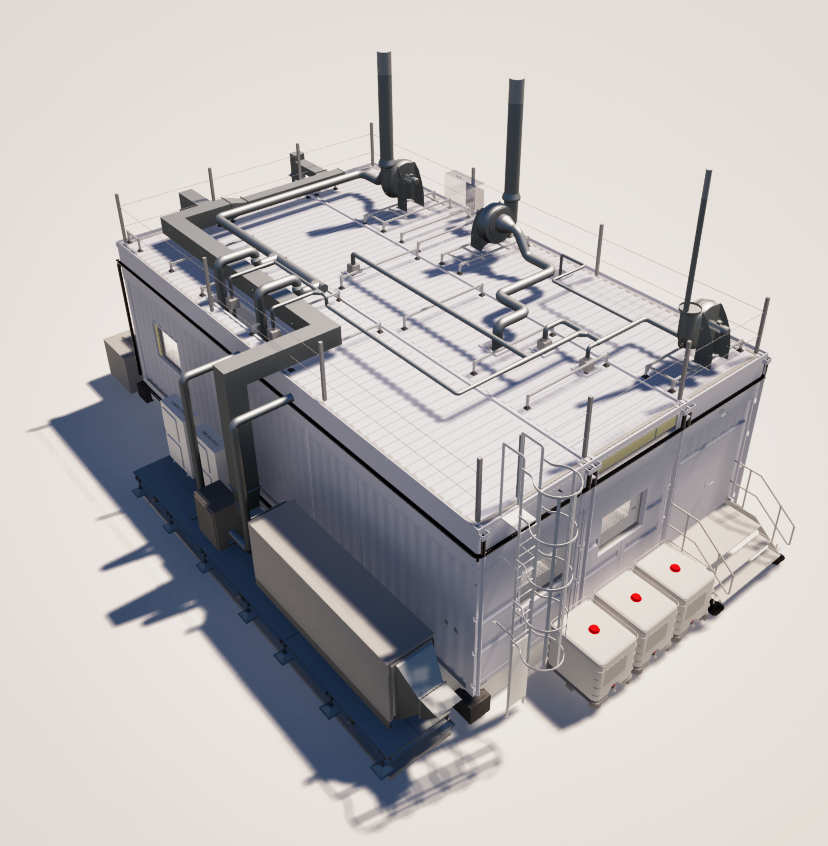

*Image is for illustration purposes. Actual design will be dependant on room layout selected during the design process.

Maxi 7 Model Technical Data

Key Information

  • External Shell 7 x 40ft high cube steel containers (conjoined)
  • External Dimensions 12,192mm (L) x 17,066mm (W) x 2,896mm (H)
  • Shell Colour Blue as standard (sprayed on request)
  • Branding Printed vinyl graphics or full wraps
  • Cladding Can be larch clad on request
  • Number Of Rooms 8 (plus corridor)
  • Personnel Airlock 2,689mm x 4,746mm x 2,200mm
  • Materials Airlock 2,120mm x 2,288mm x 2,200mm
  • Process Area 1 4,240mm x 7,084mm x 2,200mm
  • Process Area 2 4,240mm x 7,084mm x 2,200mm
  • Process Area 3 4,240mm x 7,084mm x 2,200mm
  • Process Area 4 4,240mm x 7,084mm x 2,200mm
  • Process Area 5 2,689m x 7,084mm x 2,200mm
  • Plant Room 2,689mm x 4,576mm x 2,200mm
  • Total Weight Approximately 42,000kg
  • Internal Fit-out Choose from the 3 internal Specification levels below:
  • GMP: For GMP Specification information Click here
  • ISO: For ISO Specification information Click here
  • CNC For CNC Specification information Click here

Standard Features

  • Classifications Available Laboratory, BSL1, BSL2, BSL2+, BSL3, ISO8, ISO7, ISO6, ISO5, Grade D, Grade C, Grade B
  • Ceiling Heights Available 2.2m as standard – 2.5m vault sections can be implemented for equipment installations
  • Walls & Ceiling Constructed from modular composite panels
  • Doors 6 x Double personnel doors, 6 x Single personnel doors
  • Flooring Vinyl (ESD also available)
  • Power & Network 47 x 13-amp double sockets and 25 x CAT6 data outlets
  • Lighting 38 x flush mounted LED Lights (500 Lux)
  • Air Conditioning 21C +/- 2C and 50% RH +/- 10%
  • Furniture Full fit-out available. To view the range click here
  • Equipment Full fit-out available. To view the range click here
  • Other Utilities Available: Compressed air, drainage, town’s water supply, extraction, process gasses

CLEANCUBE MAXI 7 2D LAYOUT

A full 2D drawing pack will be issued outlining all structural, mechanical & electrical general arrangements, with elevations also provided and further specific layouts for client furniture & equipment. 3D models are also produced in SolidWorks and Revit.
