SCALE it up with Guardtech – and the joy of six. Cleancube Maxi 6 shipping container cleanrooms features four large process areas – perfect for your growing enterprise.

The containers are conjoined side by side or stacked and connected by staircases, giving the Cleancube Maxi all of the usual benefits of a pre-fabricated, rapid cleanroom but with the flexibility to expand your operation to any size required.

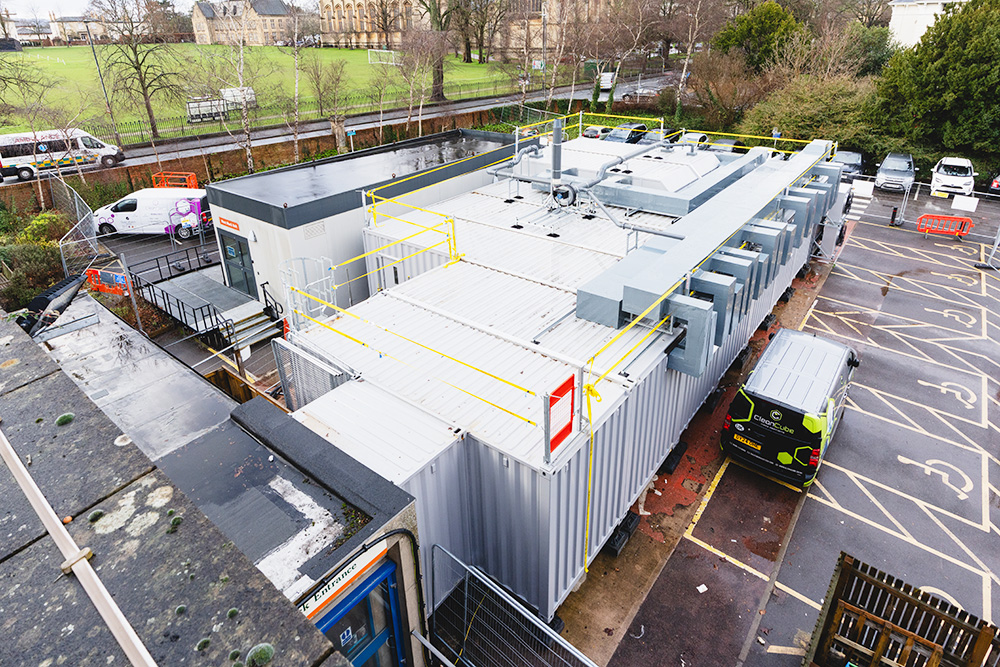

The Maxi 6 is comprised of 6 x 40ft containers connected side by side, delivering 4 large process areas, a separate PAL and MAL and a spacious Plant room.

As your business grows, your needs change – with Cleancube Maxi, you can build as high or as wide as you require, giving you peace of mind that with Guardtech, there are limits to where you can go. Unlock your potential with Cleancube Maxi.

*Image is for illustration purposes. Actual design will be dependant on room layout selected during the design process.

Maxi 6 Model Technical Data

Key Information

  • External Shell 6 x 40ft high cube steel containers (conjoined)
  • External Dimensions 12,192mm (L) x 14,628mm (W) x 2,896mm (H)
  • Shell Colour Blue as standard (sprayed on request)
  • Branding Printed vinyl graphics or full wraps
  • Cladding Can be larch clad on request
  • Number Of Rooms 7
  • Personnel Airlock 7,184mm x 2,689mm x 2,200mm
  • Materials Airlock 2,689mm x 2,218mm x 2,200mm
  • Process Area 1 4,240mm x 7,084mm x 2,200mm
  • Process Area 2 4,240mm x 7,084mm x 2,200mm
  • Process Area 3 4,240mm x 7,084mm x 2,200mm
  • Process Area 4 4,240mm x 7,084mm x 2,200mm
  • Plant Room 2,689mm x 4,576mm x 2,200mm
  • Total Weight Approximately 36,000kg
  • Internal Fit-out Choose from the 3 internal Specification levels below:
  • GMP: For GMP Specification information Click here
  • ISO: For ISO Specification information Click here
  • CNC: For CNC Specification information Click here

Standard Features

  • Classifications Available Laboratory, BSL1, BSL2, BSL2+, BSL3, ISO8, ISO7, ISO6, ISO5, Grade D, Grade C, Grade B
  • Ceiling Heights Available 2.2m as standard – 2.5m vault sections can be implemented for equipment installations
  • Walls & Ceiling Constructed from modular composite panels
  • Doors 6 x Double personnel doors, 7 x Single personnel doors
  • Flooring Vinyl (ESD also available)
  • Power & Network 39 x 13-amp double sockets and 20 x CAT6 data outlets
  • Lighting 32 x flush mounted LED Lights (500 Lux)
  • Air Conditioning 21C +/- 2C and 50% RH +/- 10%
  • Furniture Full fit-out available. To view the range click here
  • Equipment Full fit-out available. To view the range click here
  • Other Utilities Available: Compressed air, drainage, town’s water supply, extraction, process gasses

CLEANCUBE MAXI 6 2D LAYOUT

A full 2D drawing pack will be issued outlining all structural, mechanical & electrical general arrangements, with elevations also provided and further specific layouts for client furniture & equipment. 3D models are also produced in SolidWorks and Revit.

Guardtech Group Make an Enquiry

Got a question for the Cleancube team? Not sure exactly which solution suits the needs of your application? Click the button below to contact the team now for a rapid response to your enquiry.

Structural THE MAIN ELEMENTS THAT MAKE UP YOUR CLEANCUBE

Here we consider the various structural components that make up your perfect portable controlled environment – from walls, doors and flooring to ceiling and glazing.

Mechanical & Electrical YOUR CLEANCUBE’S KEY M&E COMPONENTS

Here we explore the different mechanical & electrical components that you can choose to customise the Cleancube to best suit your requirements – from filtration and HVAC to power management and environmental monitoring.

Furniture & Equipment FIT OUT YOUR PORTABLE UNIT IN STYLE

Guardtech offer a wide range of furniture & equipment solutions to help you get the most out of your Cleancube. From Trespa workbenches, cleanroom-grade chairs and shelving right through to biosafety cabinets, laminar flow units and transfer hatches.

Configurator Build Your Own Cleancube

Tailor your perfect portable controlled environment solution with our Cleancube configurator tool. Modify the elements your Cleancube needs to meet the specific requirements of your application – from classification, temperature and humidity controls to the type of doors or LUX level you want.

We’ve streamlined the process so you can quickly and efficiently order the Cleancube Mobile Cleanroom you need to take your operations to the next level.
